Testing your e-bike battery voltage helps determine if it holds a proper charge or if it has dropped below its safe operational voltage threshold.
⚠️Critical Safety Warning⚠️
Never insert multimeter probes into current measurement ports (labeled "10A", "20A", or "mA") or select current modes ("A" or "mA") when testing voltage. Doing so creates a direct short circuit, which can destroy the multimeter, damage the battery, or cause severe electrical sparks and fire hazards.
1 Connect the Multimeter Probes
- Plug the Black probe into the COM (Common) port.
- Plug the Red probe into the VΩ (Voltage/Resistance) port.
Verification: Ensure neither probe is plugged into an current port (10A, 20A, or mA
2 Select the DC Voltage Setting
Turn the multimeter dial to DC Voltage (indicated by a V with a straight line or dashed line above it: V⎓).
For manual-ranging multimeters testing a standard 48V battery, set the dial to 200V DC (a range higher than the expected maximum voltage).
For auto-ranging multimeters, ensure DC mode is active on the screen.

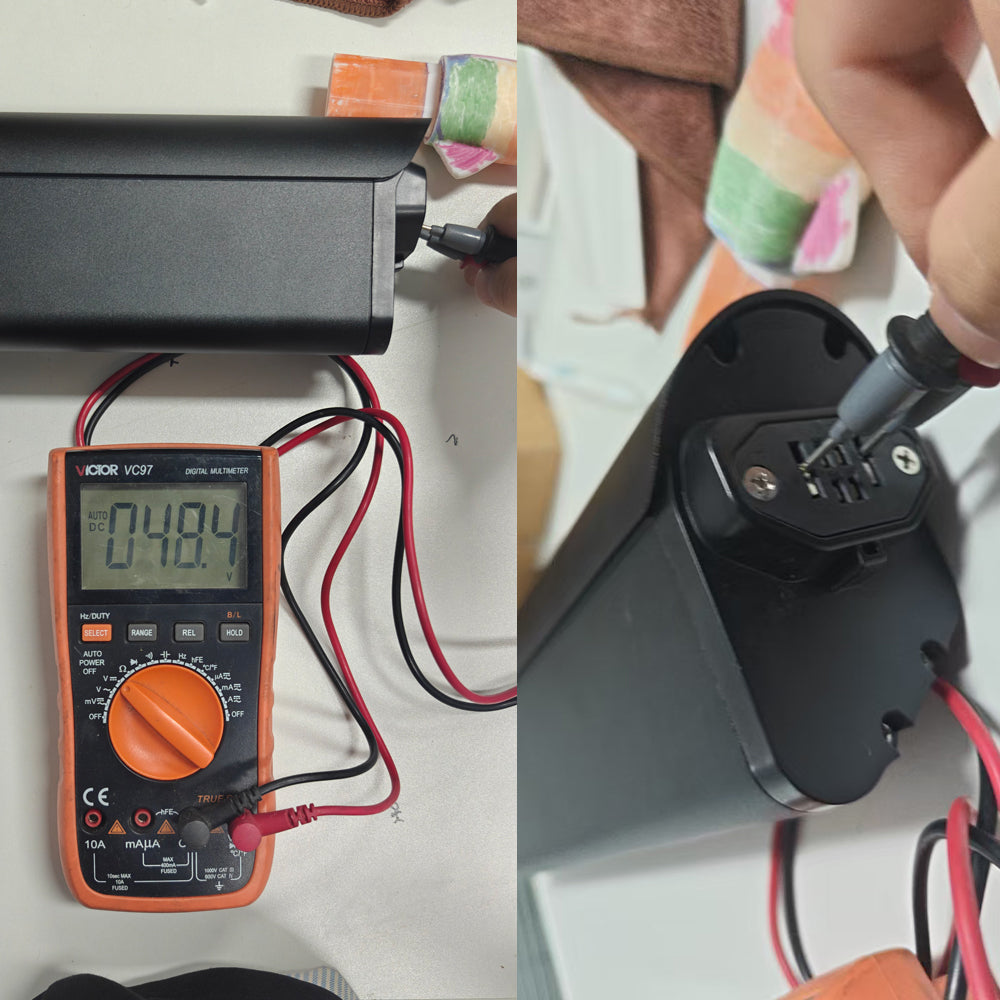

3 Measure the Battery Terminals
Touch the metal tip of the Red probe to the Positive (+) battery output terminal.
Touch the metal tip of the Black probe to the Negative (-) battery output terminal.
Safety Note: Keep the metal tips of the probes apart. Never allow the red and black probe tips to touch each other while contacting the battery terminals.
4 Understanding Your Reading (48V Lithium-Ion Battery Example)
Fully Charged (~54.6V): The battery is at maximum capacity.
Nominal Level (~48V): The battery is at normal operating voltage.
Low Battery / Cutoff Threshold (~42V or lower): The battery is fully discharged. If the reading stays permanently below 40V–42V even after charging, the battery may be over-discharged or the internal BMS (Battery Management System) protection may have triggered.
